High Efficiency Industrial Electric Steam Generator Small Volume For Laundry Shop

Name: High Efficiency Industrial Electric Steam Generator Small Volume For Laundry Shop
Brand: WILFORD
Price: 1 USD

Wholesale High Efficiency Industrial Electric Steam Generator Small Volume For Laundry Shop from china suppliers

Brand Name : WILFORD

Model Number : LDR

Certification : CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 50 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Wooden box package

Rated evaporation : 12-50kg/h

Input power : 9-36KW

Input current : 14-54A

Main steam valve diameter : 15DN

Safety valve diameter : 15DN

Fuel : Electric

Contact Now

High Efficiency Industrial Electric Steam Generator For Laundry shop

Product introduction

This product is an electric steam generator, which can be exempted from inspection and free of complicated annual examination procedures.

Choose to use high-quality heating tubes and controllers to ensure safe and long-term operation of the equipment.

The water capacity does not exceed 30L and the volume is small.

Its controller can automatically switch the heating tube in groups, which is efficient and safe.

The ability to adapt to water quality is strong and the steam quality is good.

PID pressure control adjustment, to meet the pressure difference plus or minus 0.01PM.

The protection device is complete and its operation is safe and reliable.

Parameter

Model			LDR0.012-0.7	LDR0.016-0.7	LDR0.025-0.7	LDR0.035-0.7	LDR0.05-0.7
Project		UNIT	LDR0.012-0.7	LDR0.016-0.7	LDR0.025-0.7	LDR0.035-0.7	LDR0.05-0.7
Rated evaporation		Kg/h	12	16	25	35	50
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7
Saturated steam temperature		℃	170	170	170	170	170
Input power		KW	9	12	18	27	36
Input current		A	14	18	27	41	54
Rated voltage		V	3N AC 50Hz 380V
a Main steam valve diameter		DN	15	15	15	15	15
b Safety valve diameter		DN	15	15	15	15	15
c Inlet diamater		DN	15	15	15	15	15
d Blowoff valve diameter		DN	150	15	15	15	15
Overall size	L	mm	600	600	680	680	750
	W	mm	540	540	600	600	600
	H	mm	800	800	950	950	1200
Weight		kg	86	95	105	115	130

Feature

Belongs to inspection-free products

Volume is less than 30L

Customized nickel base alloy steel heating tube

PID pressure control adjustment

Long service life and safety

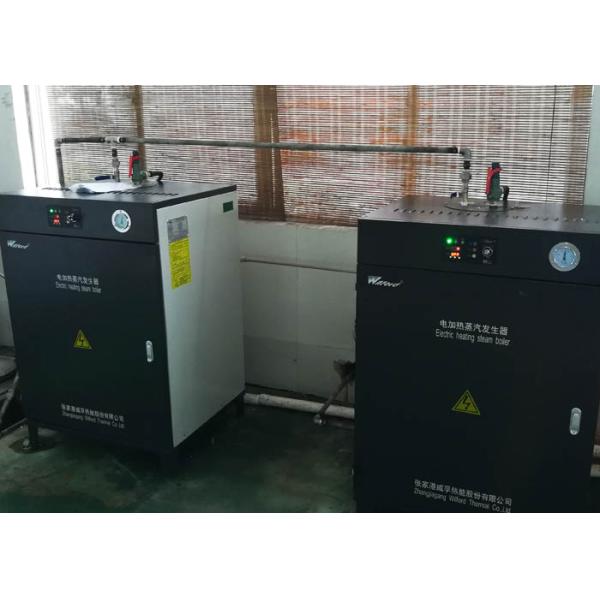

Product picture

Project case diagram
