0.7Mpa 100KG Industrial Electric Steam Generator For Rice Mill

  • 1
  • 2

Brand Name : WILFORD

Model Number : WDR

Certification : ISO9001,CE,ASME

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Standard export wooden Packing

Rated working pressure : 0.7Mpa(7bar)

Thermal efficiency : 92.4%--94.5%

Keywords : electric steam generator

Rated evaporation : 200kg/h

Output : Steam

Fuel : eletric

Weight : Depends

Dimension(l*w*h) : Depends

Style : Vertical

Contact Now

Industrial 100KG Electric Steam Generator Environmentally Friendly

Product introduction

For meet the customer's demand for steam, our technicians have designed this vertical steam boiler with bright colors and simple operation. The use of low surface heat load electric heating elements, and the heating element is completely submerged in water and completely insulated, so the efficiency of the electric boiler is very high. High quality electric heating elements are used to ensure product safety and service life. Fully automatic operation mode, large range of operation load adjustment, applicable to various working conditions.

  • Rated evaporation: 200kg/h
  • Rated working pressure: 0.7Mpa
  • Advantages: clean, quiet, environmentally friendly, energy saving
  • Applications: food, medicine, heating, clothing, packaging, etc.


Parameter

Type WDR0.15 WDR0.2 WDR0.3 WDR0.5
Project Unit
Rated evaporation t/h 0.15 0.2 0.3 0.5
Rated working pressure MPa 0.7/1.0 0.7/1.0 0.7/1.0 0.8/1.0
Staturated steam temperature ℃ 170/184 170/184 170/184 175/184
Input Power KW 108 144 216 360
Input current A 162 216 324 540
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 18×6 18×8/24×6 27×8 36×10
a Main steam valve diameter DN 25 25 32 50
b Safety valve diameter DN 25 25 25 40
c Inlet diamater DN 15 15 25 25
d Blowoff Valve diameter DN 25 25 40 40
Overall size L mm 1100 1150 1300 1450
W mm 950 950 1100 1350
H mm 1950 2000 2100 2300

For boiler steam capacity up to or more than 300kg/hr ,the structure is seperated --boiler with seperate electrical control cabinet.		 A mm - - - 1200
B mm - - - 600
C mm - - - 2000
Weight kg 350 450 680 980
We can provide customized products for specific power supply in the world.

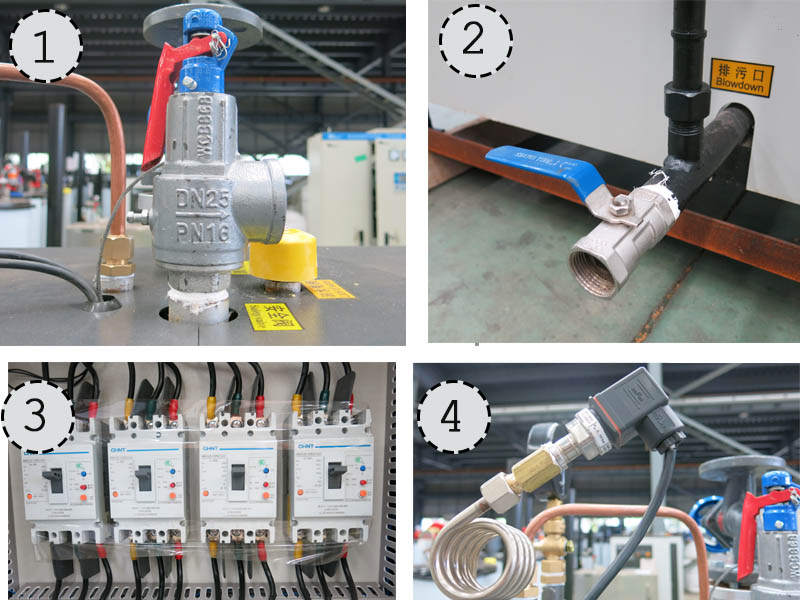

Product detail drawing

0.7Mpa 100KG Industrial Electric Steam Generator For Rice Mill


Application

  • Rice mill,sugar factory,dyeing factory,food industry,wood processing,paper industry,textile mill,chemical factory.
  • Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.
  • Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment.
  • Biological Chemical Industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment


Service

  • Serve attentinely , Work Sincerely.

  • Including installation, commissioning, maintenance

  • Stand by 24 hours a day.

  • We provide good quality and competitive price.

  • welcome to visit our website and our factory in china.
